SERVO DRIVERS
X MOTION FAMILY
Ultra-Compact Design, Maximum Performance

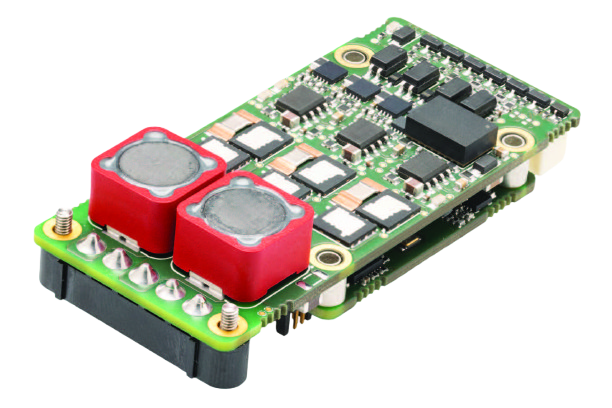

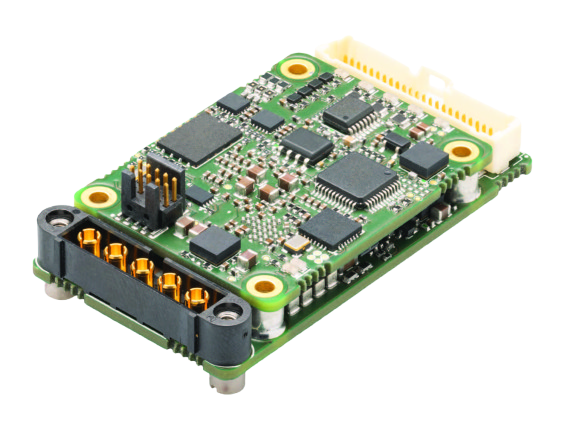

The X Motion series is an advanced servo drive family designed with high power density. Despite its ultra-compact size of just 12.6 cm³ (35 x 30 x 12 mm), it delivers up to 350 W of power, offering exceptional performance for defense-specific applications. Equipped with an integrated motion controller and CANOpen communication protocol, X Motion systems provide ideal solutions for demanding operational environments.
X Motion is a perfect fit for military and industrial applications requiring high performance, compact size, and robust reliability.
Application Areas
- Electro-Optical Systems:Camera gimbal systems, lens control mechanisms, stabilization and target tracking modules
- Defense and Aerospace Platforms:Weapon turret systems, stabilizers, guidance mechanisms
- Robotics and Automation:Compact robotic arms, mini unmanned systems, industrial actuator control
- Mobile Platforms: Unmanned ground/air vehicles, AGV/AMR systems
- Industrial Systems:Sensor orientation units, positioning systems, small motor-based propulsion and transport mechanisms
| Key Features | |||
| Operating -40 °C to +60 °C | |||
| Vibrations up to 20 GRMS | |||
| 350W powerful servo drive in a (0.7 in³) | |||
| Advanced CANOpen networking | |||
| Integrated EMI filter option | |||
| feedback Options: SSI Encoder, Incremental Encoder, Resolver, Hall Encoder, BIS, Absolute Encoder, Custom Encoder (422) | |||
| Digital Input and Output Options | |||
| External NTC or PT100/1000 sensor integration | |||
| Integrated heatsink option | |||
| Motor Types: PMSM, BLDC, DC |
| Quality & Standarts Compliance | |||
| MIL-STD-810G 500.5 Low Pressure Altitude | |||
| MIL-STD-810G 501.5 High Temperature | |||
| MIL-STD-810G 502.5 Low Temperature | |||
| MIL-STD-810G 514.6 Vibration | |||
| MIL-STD-810G 516.6 Shock |
| Technical Features | |
| Weight without Heatsink | 25g |
| Dimension without Heatsink | 35 x 30 x 12 mm |
| Mounting method | Panel Mounted |
| Digital Input Option | 12V Logic Level (Internally connected to GND) |
| Feedback | SSI, BiSS, BiSS-C, Incremantal, Hall, Resolver |
| Communication Option | CAN |
| Minimum supply voltage | 18 VDC |
| Nominal supply voltage | 28 VDC |
| Maximum supply voltage | 36 VDC |
| Maximum continuous power output | 350 W |
| Efficiency at rated power (at nominal conditions) | > %98 |
| Ic, Amplitude sinusoidal/DC continuous current | 15 A |
| Sinusoidal continuous RMS current limit (Ic) | 10 A |
| Peak current limit | 2 x Ic |
| Ambient Temperature Range | -40 °C to +60 °C |
| Storage temperature | -55 °C to +85 °C |
| Altitude | 25.000 meters |
| Maximum Humidity | up to 95% non-condensing at 25°C |
| Vibration | 20 Hz –2000 Hz, 14.6 grms |
| Mechanical Shock | ±30g Half sine, 11 msec., 3 per direction |
| Protection level | Open Frame |
