BOMB DISPOSAL ROBOT ARM
5 Axes Robot Arm

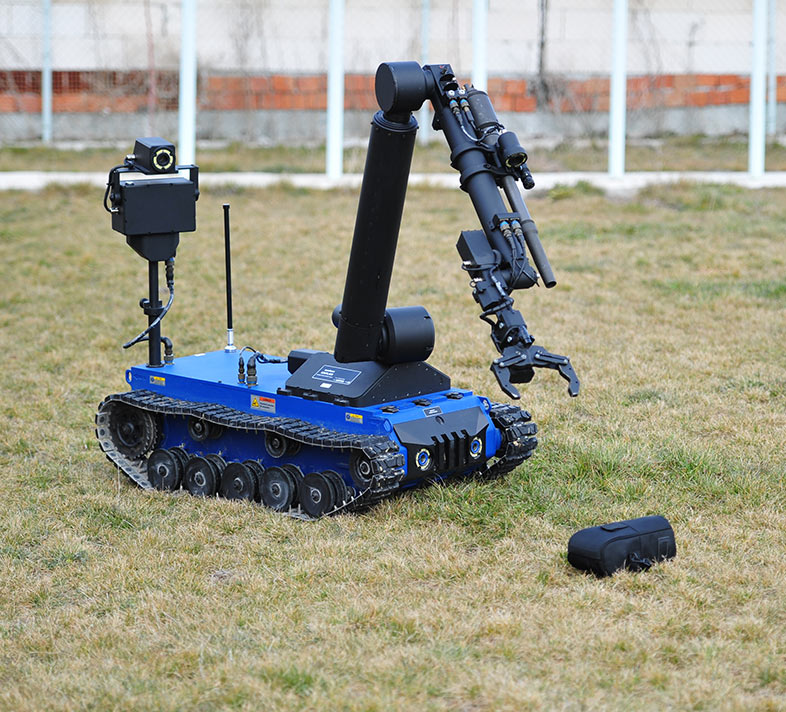

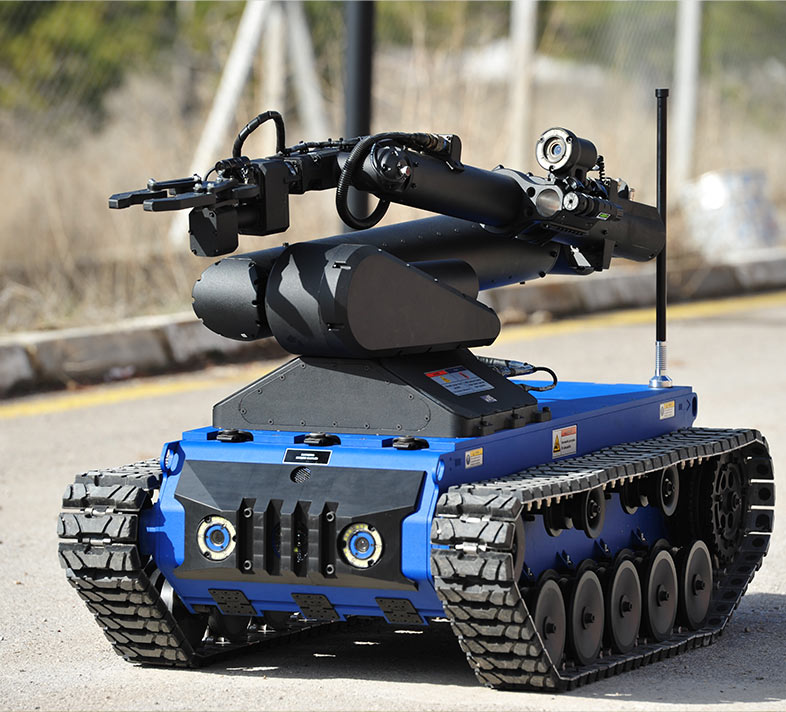

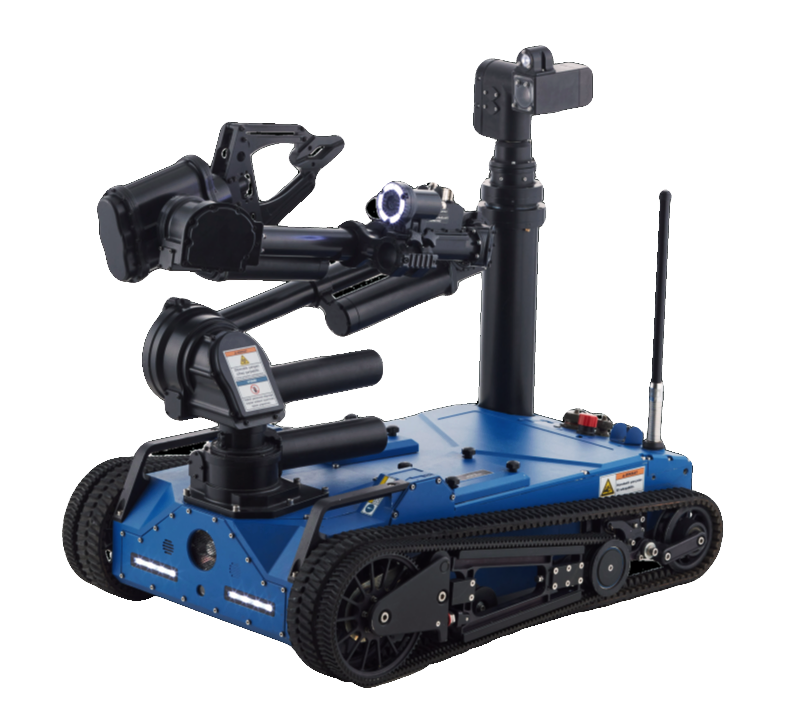

Altınay Defense conducts original and innovative work in the field of Bomb Disposal Robot Arms. The Bomb Disposal Robot Arm is a highly mobile product designed to safely neutralize improvised explosive devices under challenging conditions. The Altınay Bomb Disposal Robot Arm, operating in 5 axes, is actively used in the ERTUĞRUL Bomb Disposal Robot.
Robust and Flexible Design: The Bomb Disposal Robot Arm provides operational efficiency in complex and narrow areas by adapting to challenging conditions with its strong and durable structure.
High Mobility: The 5-axis movement capability of the robot arm assists in the precise and controlled neutralization of explosives, providing operators with a safe working environment.
Integration with ERTUĞRUL Bomb Disposal Robot: Altınay Bomb Disposal Robot Arm is designed to be compatible with the ERTUĞRUL Bomb Disposal Robot developed by ASELSAN. A total of 105 robot arms have been produced and delivered for ERTUĞRUL. At least one robot is available in each province of our country, totaling 100 Ertuğrul Bomb Disposal Robots actively used by bomb disposal experts.
Altınay Defense Technologies provides security forces with a secure and effective solution in bomb disposal operations through the Bomb Disposal Robot Arm. With our innovative approach and engineering capabilities, we ensure superior performance and reliability to our customers.
Specifications
| General | |||
| Number of Axes | 5+1 | ||
| Robot Arm Weight | 19.5 kg | ||
| Gripper | |||
| Number of Grippers | 2 | ||
| Maximum Gripper Opening | 200mm | ||
| Gripper Clamping Force | 15 kgf | ||
| Gripper Opening Time | 9 seconds | ||
| Cameras | 2 | ||
| Accessories | Bomb Disposal Gun, Glass Breaking, Cable Cutting | ||
| Rotation Limits | |||
| 1st Axis | ±154°±1°, Total 300° | ||
| 2nd Axis | -39°±1°, Total 200° | ||
| 3rd Axis | -149°±1°, +121°±1°, Total 270° | ||
| 4th Axis | ±170°±1°, Total 340° | ||
| 5th Axis | -, Total 360° (Continuous) | ||
| Full Opening Time | 28 seconds | ||
| Carrying Capacity | 10 kg @ 30 cm / 5 kg at full opening | ||
