ACTUATOR SYSTEMS

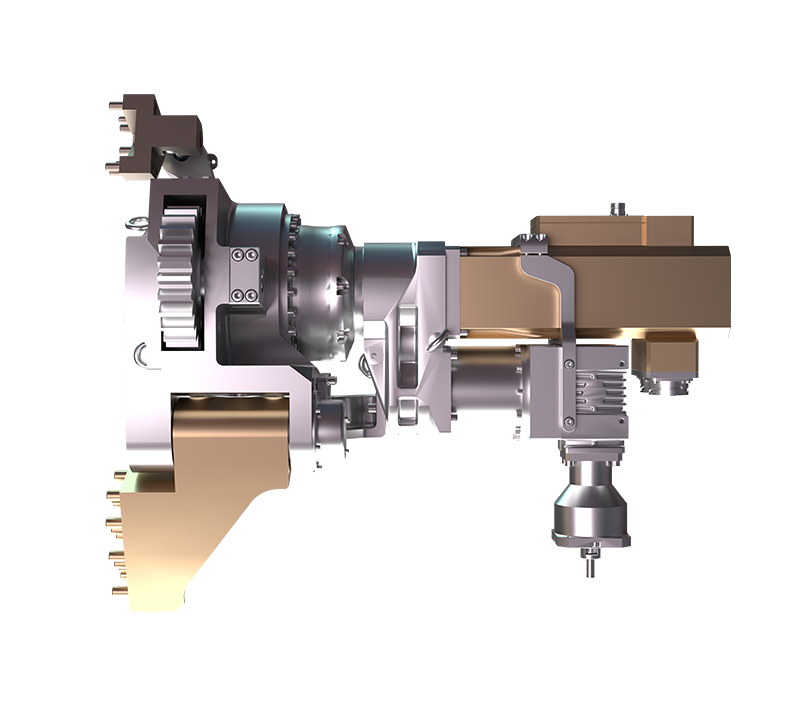

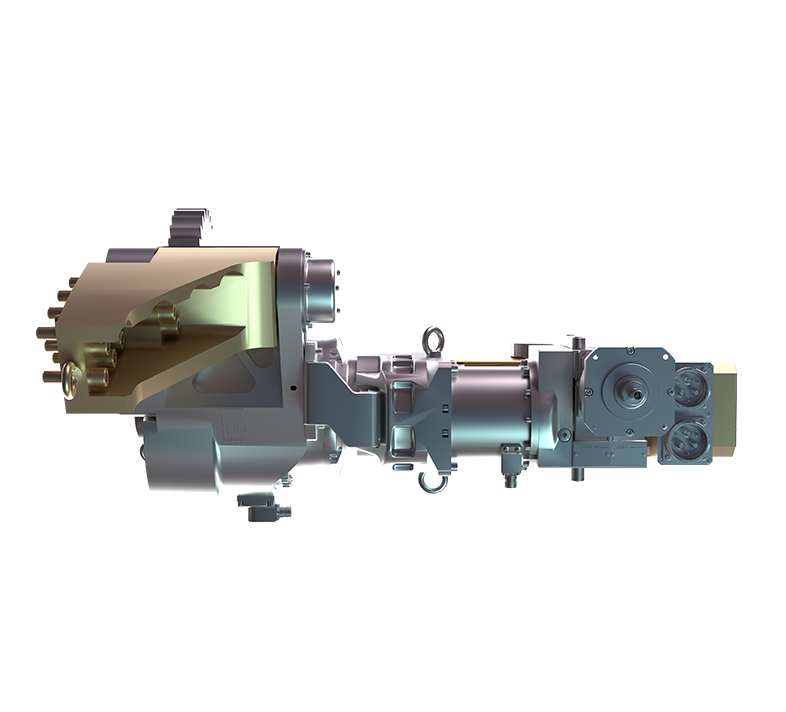

AST-R SERIES ACTUATORS
Strong, Precise, and Reliable
At Altınay Defense Technologies, we offer critical solutions with our lateral axis actuator systems, renowned for their powerful performance, precise control, and superior reliability.
Precise Motion Control
Our lateral axis actuator systems ensure precise motion control, allowing you to achieve the desired positions with utmost accuracy. Designed with advanced technology, our systems perform lateral axis movements quickly and accurately. Precision and accuracy are tailored to meet your expectations even in the most critical applications.
Reliable and Durable Performance
Our lateral axis actuator systems provide reliable and durable performance. Manufactured using high-quality materials and advanced technology, our systems excel even in demanding operating conditions. The robust motion capability enables stable and reliable lateral axis movements.
Flexibility and Customization
Our systems offer flexibility to adapt to various applications. They can be utilized in diverse fields such as land, air, and sea vehicles, defense systems, and industrial applications. We specialize in providing excellent solutions by offering flexibility to meet our customers' specific requirements.
Lateral Axis Actuator Systems are one of the leading products of Altınay Defense Technologies, combining reliability, precise control, and flexibility. With our industry experience and technical expertise, we aim to provide the best solutions to our customers. Altınay Defense Technologies is here to meet the future defense needs.
SPECIFICATIONS
| SPECIFICATIONS | AST-R1.7 | AST-R240 | AST-R60 |
| Continuous Output Force | 0,96 kNm | 500 Nm | 20 Nm |
| Maximum Output Force | 1,7 kNm | 1400 Nm | 60 Nm |
| Maximum Braking Torque | 4,5 kNm | 2000 Nm | 110 Nm |
| Continuous Working Speed | 6,3 rad/sec | 3.5 rad/sec | 2600 cycle/min |
| Max Working Speed | - | 4.8 rad/sec | |
| Power Consumption | ~8 kW | ~3 kW | - |
| Weight | 200 kg | - | 110 kg |
| Working Range | 360° continious | 360° continious | 360° continious |
| Drive with Servo Motor | Available | Available | Available |
| Manual Drive with Handwheel | Available | Available | Available |
| Handwheel DC Motor Drive | Available | - | Available |
| Handwheel Driving Moment | ≤1 Nm | - | ≤0.8 Nm |
| Compliant Standards | MIL-STD 810G | MIL-STD 810G | MIL-STD 810G |
| Operating Temperature Range | -32°C / +52°C | -25°C / +55°C | -32°C / +52°C |
| Platform | Land Platforms | Land Platforms | Land Platforms |
